Features:
Power input: AC 110-240V 50-60Hz
Data Inputs: EtherCon & 3 Pin XLR In (or 5 Pin)
Data Outputs: (8) DMX Outputs (3-Pin or 5-Pin XLR) with LED signal indicator
Connectors: 2 RJ45 TCP/IP 10/100M Ethernet Connectors
Signal Conversion: ArtNet to DMX Signal Conversion
LCD Display
Tech Specs
Control
DMX 3-Pin Connectors?: Yes
DMX 5-Pin Connectors?: Yes
Electrical
Voltage Range: 100-240
Maximum Wattage: 6w
Power Cable Connector – Fixture Side: IEC
Main Power Connector on Included Cable: Edison
A basic, no-nonsense eight port Art-Net rack mountable DMX interface.

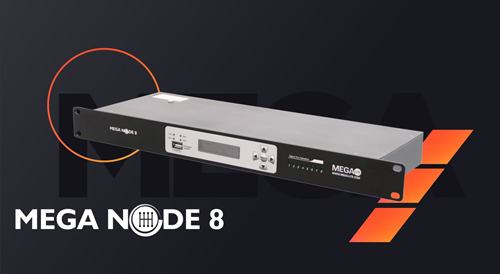

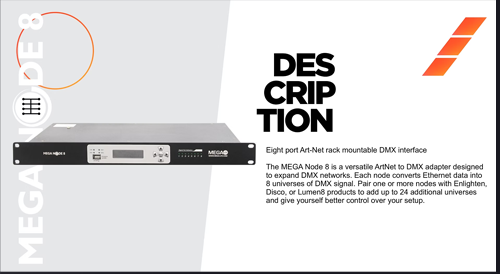

The MEGA Node 8 is a versatile ArtNet to DMX adapter designed to expand DMX networks. Each node converts Ethernet data into 8 universes of DMX signal. Pair one or more nodes with Enlighten, Disco, or Lumen8 products to add up to 24 additional universes and give yourself better control over your setup.
