HUDDLE CAM G3 PTZ controller

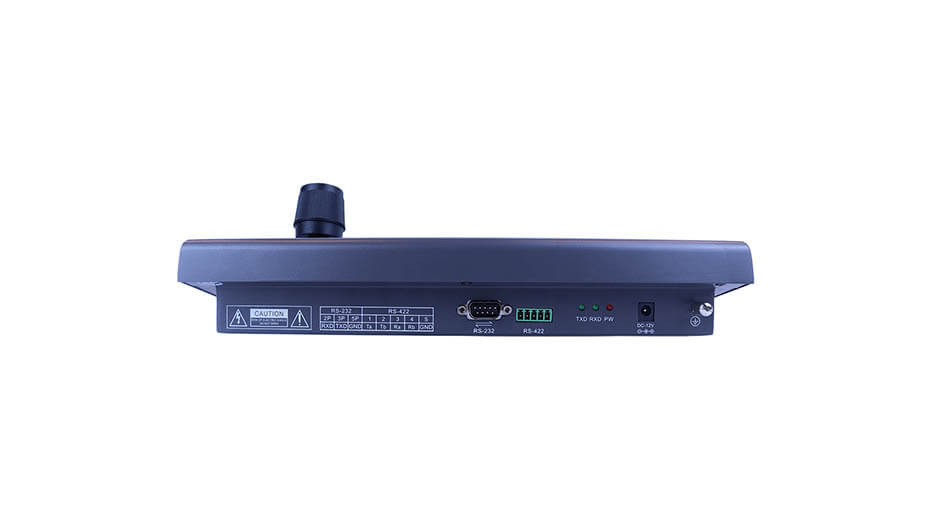

HUDDLE CAM G3 PTZ controller - Image 2

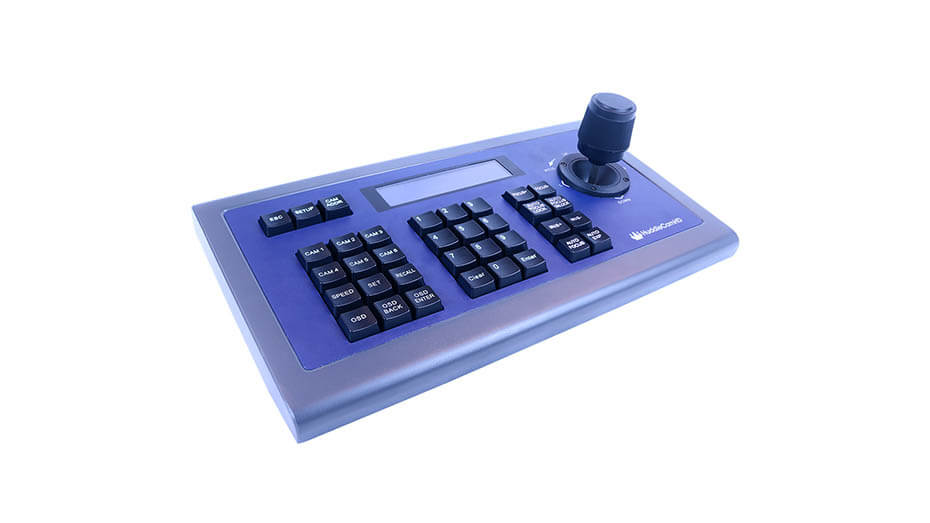

HUDDLE CAM G3 PTZ controller - Image 3

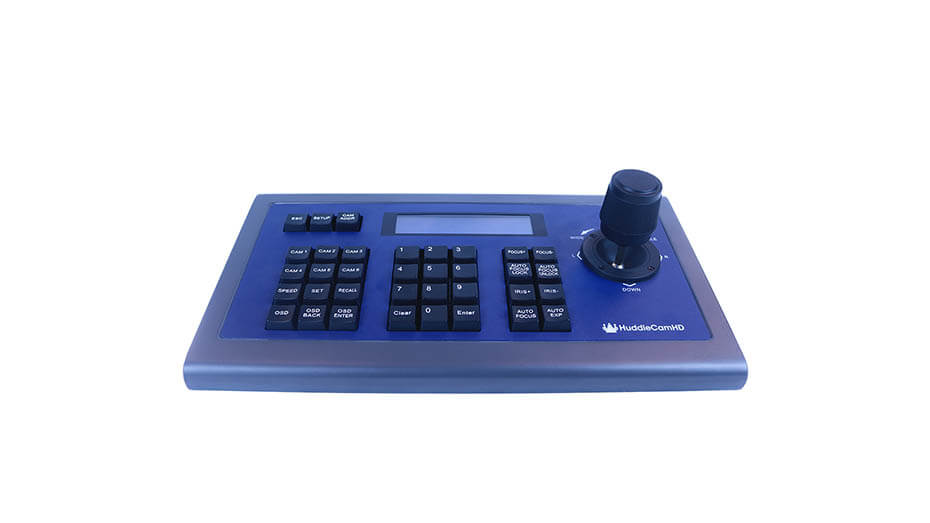

HUDDLE CAM G3 PTZ controller - Image 4

HUDDLE CAM G3 PTZ controller

Durable Metal Housing
VISCA, PELCO-P & D
RS-232, RS-422, & RS-485
On Screen Display
Variable Speed PTZ control
Iris, Focus, Home, Backlight, & Preset controls
6 Camera quick select buttons
Activity LEDs
Easy setup
Three-Axis Joystick
No more useless buttons!
Technical Specifications
Connections: RS-232, RS-485, RS-422
Baud Rate: 1200-19200 bps
Interfaces: DB9 RS-232; 5SCT RS-485/RS-422
Maximum Cameras: Control up to 255 Cameras
Maximum Presets: Up to 255 Presets
Maximum Distance: 3,937′ (1200m) using 24 gauge twisted pair
Power: 6W (12VDC)
Working Temp: 14°F – 122°F (-10°C – +50°C)
Working Humidity:
Weight: 3.4 lbs | 1.6 kg
Dimensions (in.): 12.6″(W) x 7.1″(D) x 4.3″(H)
Dimensions (mm.): 320mm(W) x 181mm(D) x 110mm(H)

Delivery areas: Austin · San Antonio
SKU: 8eb3851b9159 Categories: , , Tag: Brand:

Description

Introducing the re-designed HC-JOY-G3 PTZ joystick controller from HuddleCamHD. This third-generation joystick includes everything you loved about our second-generation joystick with significant improvements for user experiences.

Six Quick Camera Select Buttons
Designed with a wide variety of PTZ camera operation environments in mind, the third-generation joystick now features six quick camera select buttons on the left side of the controller.

Universally Compatible

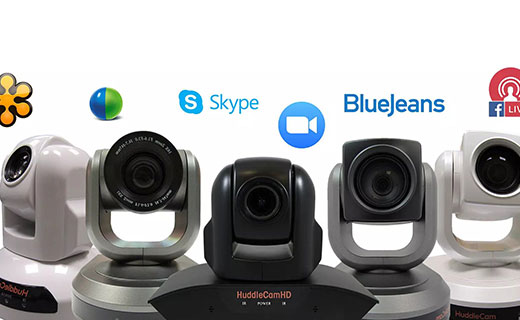

All HuddleCamHD cameras are designed for plug-and-play compatibility with web-based video conferencing software like Skype, GoToMeeting, WebEX, or Zoom. Enjoy seamless integration even with live streaming applications like Facebook Live.

Resources:
